AutoCAD 2D 3D Tutorial

What is AutoCAD?
What does AutoCAD stand for?
What is the use of AutoCAD?
Which version of AutoCAD is the best?


How to;

open AutoCAD Software?
setup AutoCAD for the first drawing?
How to set Drawing Units in AutoCAD?
How to set Dimension Styles in AutoCAD?
lock the UCS icon in AutoCAD?
hide Unhide the UCS icon from AutoCAD?


How to draw;

a line in AutoCAD?
a straight line in AutoCAD?
a line with giving measurement in AutoCAD?
a line with giving measurement and angle in AutoCAD?


How to Draw;

a polyline in AutoCAD?
a construction Line in AutoCAD?
a polygon in AutoCAD?
a rectangle in AutoCAD?
an Arc in AutoCAD?
a Circle in AutoCAD?
a Spline in AutoCAD?
an Ellipse in AutoCAD?
an Ellipse Arc in AutoCAD?
the points in AutoCAD?


How to use these commands in AutoCAD;

Hatch and Gradient
Erase
Copy
Mirror
Offset
Array
Move
Rotate


Use of these commands in AutoCAD

Scale
Stretch
Trim
Chamfer
Fillet
Region
Explode


How to Type Text in AutoCAD?


Use of these commands in AutoCAD

Dimension
Extrude
Subtract
revsurf


AutoCAD  3d Projects Videos

Just Goto YouTube search my channel Lunar Computer College Click on the playlists and find the AutoCAD playlists and Watch.


What is AutoCAD?

AutoCAD is an Architectural and Engineering software, where you can create 2d and 3d models of anything you want.

Goto AutoCAD Commands Index


What does AutoCAD stand for?

AutoCAD stands for Automatical Computer Aided Design.

Goto AutoCAD Commands Index


What is the use of AutoCAD?

AutoCAD creates the models in both 2d and 3d. We can create a house map and it’s 2d and 3d model.

We can also create the models of anything in 2d and 3d using AutoCAD software.

 Goto AutoCAD Commands Index


Which version of AutoCAD is the best?

There are several versions of AutoCAD available in the market, but you should select the one according to your computer requirement.

 Goto AutoCAD Commands Index


How to open AutoCAD Software?

Click on Start, type AutoCAD. If you see AutoCAD in the software list, click on it to open.

Otherwise, you have to install it on your computer.

 Goto AutoCAD Commands Index


How to setup AutoCAD for the first drawing?

It is very compulsory to set drawing units and dimension styles in AutoCAD before starting drawing.

Setting the UCS icon and drawing area with zoom command.

 Goto AutoCAD Commands Index

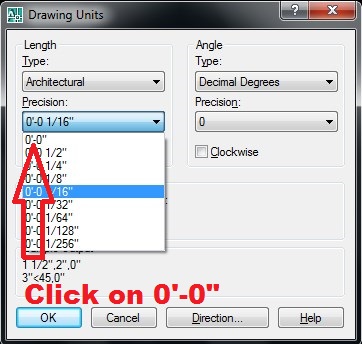

How to set Drawing Units in AutoCAD?

Step 1: Type un or units [space or Enter]

Step 2: Do the following as shown in the images below step by step

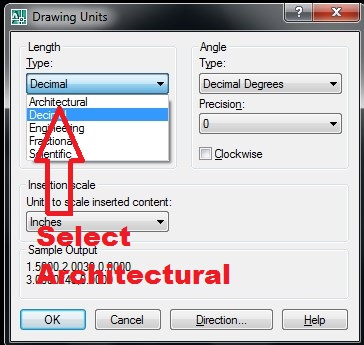

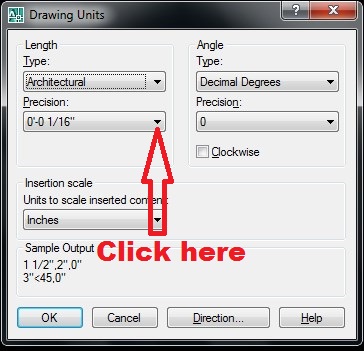

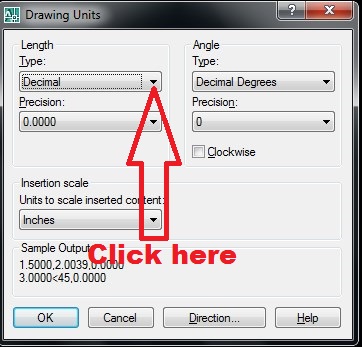

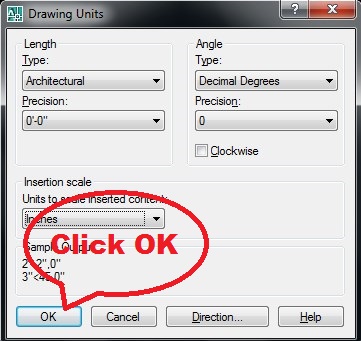

Drawing Units Drawing Units-1 Drawing Units-2 Drawing Units-3 Drawing Units-4 Drawing Units-5

 Goto AutoCAD Commands Index

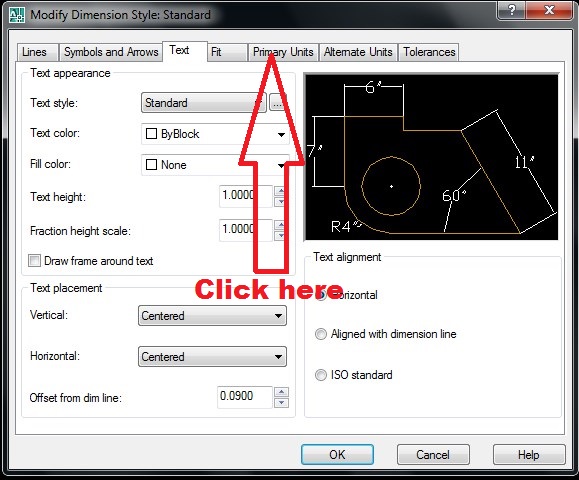

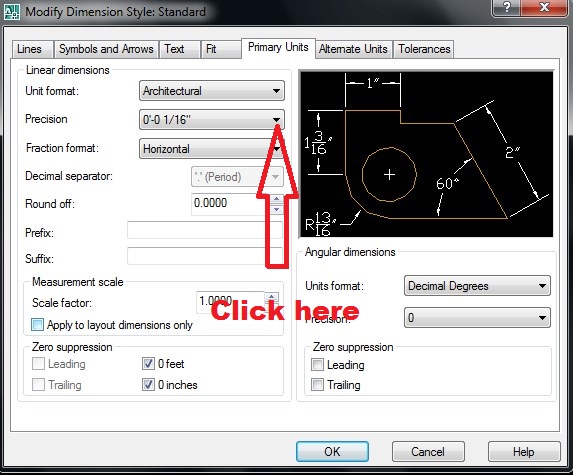

How to set Dimension Styles in AutoCAD?

Step 1: Type d  [space or Enter]

Step 2: Do the following as shown in the images below step by step

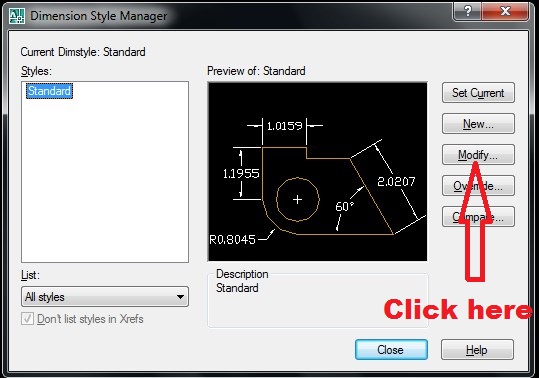

Dimension Style

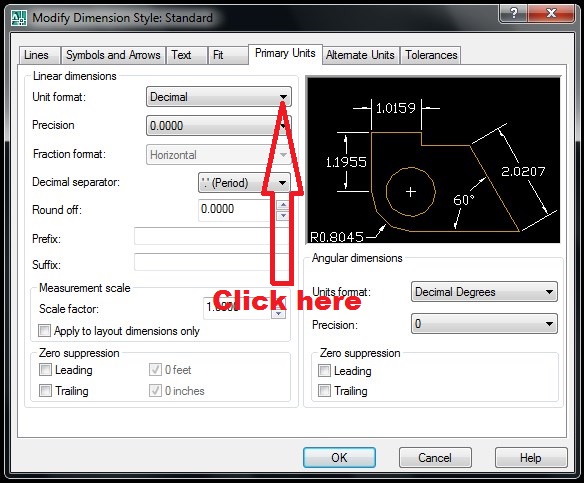

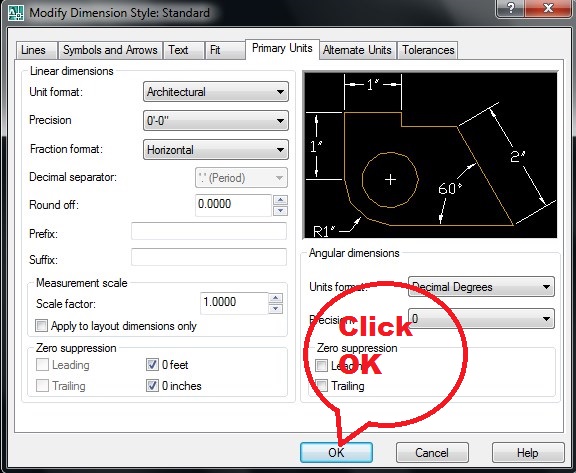

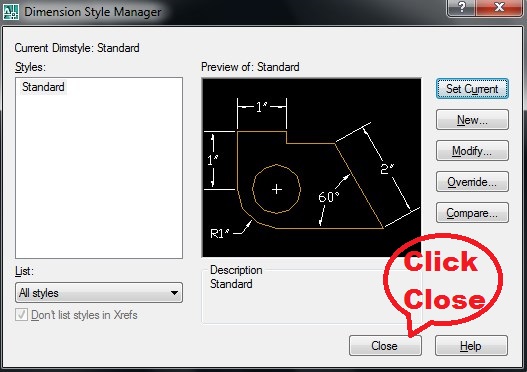

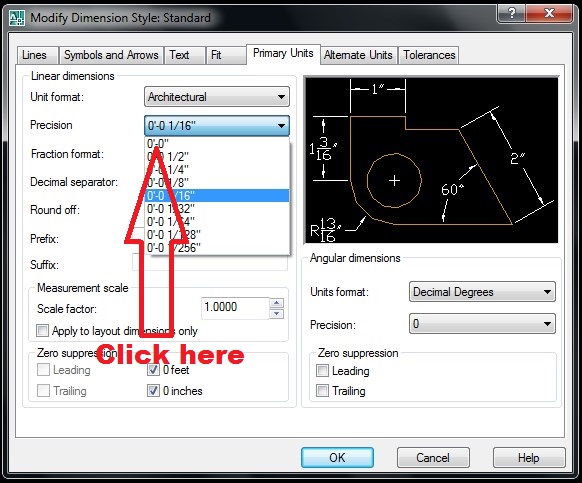

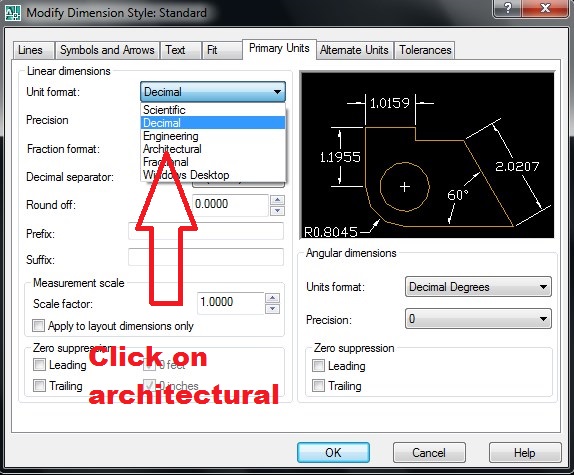

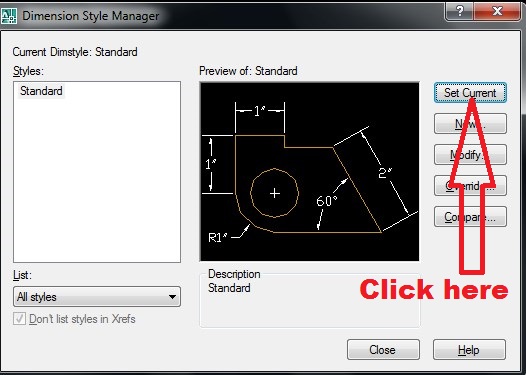

Dimension Style-1 Dimension Style-2 Dimension Style-3 Dimension Style-4 Dimension Style-5 Dimension Style-6 Dimension Style-7 Dimension Style-8

 Goto AutoCAD Commands Index


How to lock the UCS icon in AutoCAD?

Step 1: Type (ucsicon) [Space or Enter]

Step 2: Type (n) [Enter]

To Unlock type (or) on step 2:

Goto AutoCAD Commands Index


How to hide Unhide the UCS icon from AutoCAD?

Step 1: Type (ucsicon) [Space or Enter]

Step 2: Type (off) [Enter] for hide

Type (on) on step 2: for unhide

Goto AutoCAD Commands Index


How to Draw a Line in AutoCAD?

Type (l) or (line) [space or Enter] or click on autocad line icon from the Draw toolbar.

Click on the AutoCAD drawing screen to specify the first point:

Click on the screen to specify the next point so on …

You can press [Enter] or Right Click the Enter] to complete the line.

You can press (c) during line drawing to close the line from the first point.

Goto AutoCAD Commands Index


How to draw a straight line in AutoCAD?

Turn On Ortho Mode

  1. F8 (on /off)
  2. Type Ortho [space] then type on to on and off to off.
  3. Click on the ORTHO icon from down to AutoCAD command line to On Off
  4. Turn On the Ortho Mode then draw the line.

Goto AutoCAD Commands Index


How to Draw a Line with giving measurement in AutoCAD?

Type (l) or (line) [space or Enter] or click on autocad line icon from the Draw toolbar.

Click on the AutoCAD drawing screen to specify the first point:

Move the mouse to set the line direction and type line size e.g 10′ or 7″ or 5’6″ [Enter]

Goto AutoCAD Commands Index


How to Draw a Line with giving measurement and angle in AutoCAD?

line or l or click on autocad line icon  10′<45

Goto AutoCAD Commands Index


How to draw a polyline in AutoCAD?

pline or pl or ployline to draw a polyline.

Click on the AutoCAD drawing screen to specify the first point:

Click on the screen to specify the next point so on …

You can press [Enter] or Right Click the Enter] to complete the line.

You can press (c) during line drawing to close the line from the first point.

You can press a for arc and l or line during polyline drawing.

Goto AutoCAD Commands Index


How to Draw a Construction Line in AutoCAD?

Type (xline) 0r (xl) or click on  Construction Line to draw construction line. You can use the following letters to draw a construction line with different options.

Horizontal
Vertical
Angle
Bisect
Offset

Goto AutoCAD Commands Index


How to Draw a polygon in AutoCAD?

Type (polygon) or (pol) or click on  polygon  to draw a polygon.

Enter no of sides <5>7

Specify center of polygon or [edge]:

Click on the Screen to get a center point

Type (i) [Enter] and drag mouse to draw a polygon.

Goto AutoCAD Commands Index


How to draw a rectangle in AutoCAD?

Type (rectangle) or (rec) or click on  rectangle  to draw a rectangle.

Click on the screen to

Specify first corner point

drag the mouse to draw rectangle [Enter] to complete.

Goto AutoCAD Commands Index


How to draw an Arc in AutoCAD?

Type (arc) or (a) or click on  arc  to draw an arc.

You can use the following options with arc command.

arc option in AutoCAD

Goto AutoCAD Commands Index


How to Draw a Circle in AutoCAD?

Type (circle) or (c) or click on  circle  to draw a circle.

You can use the following options with circle command.

circle options in AutoCAD

Goto AutoCAD Commands Index


How to Draw a Spline in AutoCAD?

Type (spline) or (spl) or click on  spline  to draw a spline.

Click on the screen to start drawing spline, then click on the next point to point to draw as much as you need.

You can use (c) to close the spline from the first point.

Goto AutoCAD Commands Index


How to Draw an Ellipse in AutoCAD?

Type (ellipse) or (el) or click on  ellipse  to draw an ellipse.

You can use the following options with ellipse command.

ellipse options

Goto AutoCAD Commands Index


How to Draw the points in AutoCAD?

Type (point) or (po) or click on  ellipse  to draw points on the screen.

You can use the following options with point command.

point options in AutoCAD

Goto AutoCAD Commands Index


How to use Hatch and Gradient commands in AutoCAD?

Type (hatch) or (h) or click on  hatch  to fill the object with hatch and gradient.

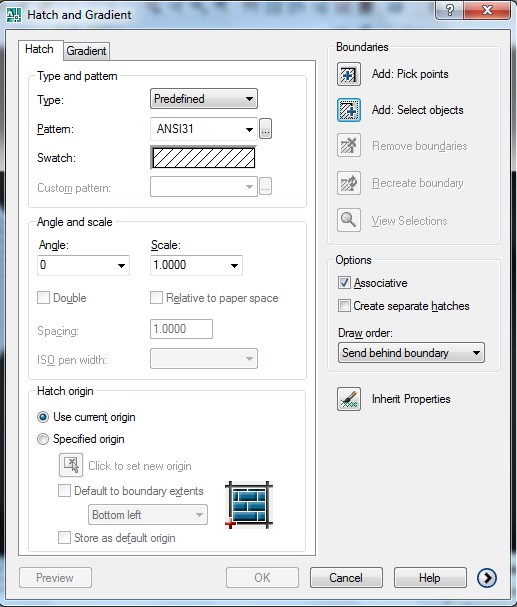

hatch and gradient window in AutoCAD

Pick the point or select the object select hatch or gradient as shown in the image above.

Goto AutoCAD Commands Index


How to use Erase command in AutoCAD?

Type (erase) or (e) or press del / delete from keyboard click on  erase  to erase the object(s) from AutoCAD screen.

Goto AutoCAD Commands Index


How to use Copy command in AutoCAD?

Type (copy) or (cp) or (co) click on  copy  to copy the object(s) in  AutoCAD.

> During the copy process in AutoCAD the base point is very important.

Goto AutoCAD Commands Index


How to use Mirror command in AutoCAD?

Type (mirror) or (mi) or click on  mirror  to get the mirror of the object in  AutoCAD.

Step 1: Select the object(s)

Click on the object [Enter]

Click on the base point for mirror

Get mirror with the mouse [enter]

Goto AutoCAD Commands Index


How to use Offset command in AutoCAD?

Type (offset) or (o) or click on  offset  to get the offset of the object in  AutoCAD.

Step 1: type offset distance

Step 2: Click on the object then click on the side of the object to get offset.

Goto AutoCAD Commands Index


How to use Array Command in AutoCAD?

Type (array) or (ar) or click on  array  to get a rectangular or polar array of the object(s) in  AutoCAD.

Goto AutoCAD Commands Index


How to use Move command in AutoCAD?

Type (move) or (m) or click on  move  to move the object(s) from base point to base point in AutoCAD.

Goto AutoCAD Commands Index


How to use Rotate command in AutoCAD?

Type (rotate) or (ro) or click on  rotate  to rorate the object(s) from the base point in AutoCAD.

Goto AutoCAD Commands Index


How to use Scale command in AutoCAD?

Type (scale) or (sc) or click on  scale  to resize the object(s) in AutoCAD with the base point in AutoCAD.

Goto AutoCAD Commands Index


How to use Stretch command in AutoCAD?

Type (stretch) or (s) or click on  stretch  to stretch the object(s) from the base point in AutoCAD.

Goto AutoCAD Commands Index


How to use Trim command in AutoCAD?

Type (trim) or (tr) or click on  trim   then double [Enter][Enter] to trim the object(s) on the click in AutoCAD.

Goto AutoCAD Commands Index


How to use Chamfer command in AutoCAD?

Type (chamfer) or (cha) or click on  chamfer   to change the objects in chamfer shape in AutoCAD as shown in the image below.

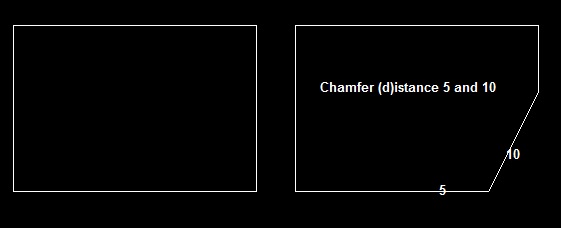

chamfer practical

Goto AutoCAD Commands Index


How to use Fillet command in AutoCAD?

Type (fillet) or (f) or click on  fillet    (r) set the fillet radius to change the objects in fillet shape in AutoCAD as shown in the image below.

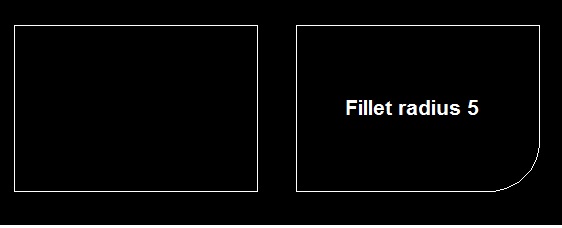

fillet practical

Goto AutoCAD Commands Index


How to use Region command in AutoCAD?

We use region command to convert multi lines in one object to create a 3d object in AutoCAD

Type (region) or (reg) or click on  region to create region of the objects in AutoCAD as shown in the image below.

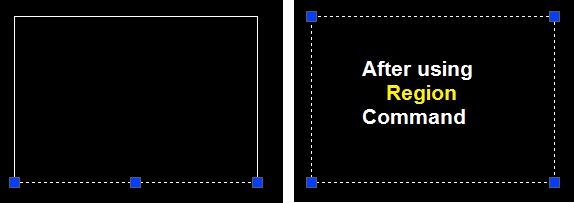

region practical

Goto AutoCAD Commands Index


How to use Explode command in AutoCAD?

We use explode command to convert region object into  multi lines in AutoCAD

Type (explode) or click on  explode, explode the region objects in AutoCAD as shown in the image below.

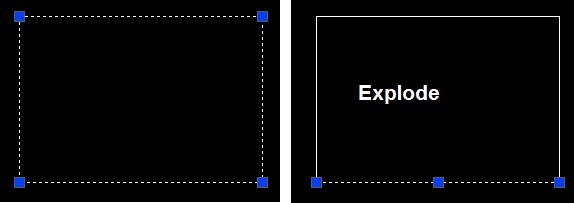

explode practical

Goto AutoCAD Commands Index


How to Type Text in AutoCAD?

Type (tex)t or (dtext) or (mtext) or click on (A) to type text in AutoCAD.

Goto AutoCAD Commands Index


How to use Dimension command in AutoCAD

We use dimension command  to measure an object in AutoCAD

To measure a line or rectangle we can use (dli) in AutoCAD

From Dimension menu we can use dimension with the following options

dimension options in autocad

Goto AutoCAD Commands Index


How to use Extrude command in AutoCAD?

We use the extrude command to convert 2d into 3d model.

Type (extrude) or (ext) to extrude the region objects in AutoCAD as shown in the image below.

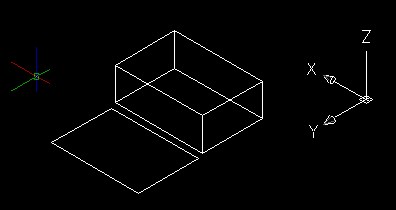

extrude practical

Goto AutoCAD Commands Index


How to use Subtract command in AutoCAD?

We use the subtract command to subtract 3d object from a 3d object.

Type (subtract) or (sub) to subtract the 3d object from the 3d object in AutoCAD as shown in the image below.

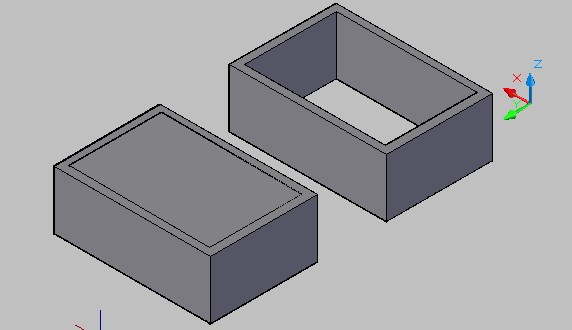

subtract practical

Goto AutoCAD Commands Index


How to use revsurf command in AutoCAD

step 1: Draw objects with a combination of line pline arc circle as shown in the image below

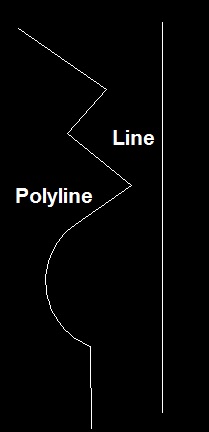

polyline and line

Now type revsurf click on polyline first then line and [Enter][Enter] shape will convert as shown below.

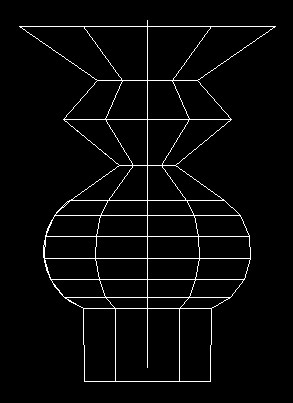

revsurf practical

We can use surftab1 and surftab2 commands to change the x-axis and y-axis number of copying.

Goto AutoCAD Commands Index
